H&R 300 AAC Blackout Handi-Rifle Review
Part 4 - Disassembly
May 4, 2013

H&R 300 AAC Blackout Handi-Rifle Review

Basic disassembly of the 300 AAC Blackout Handi-Rifle is very simple and requires a single Phillips screwdriver.

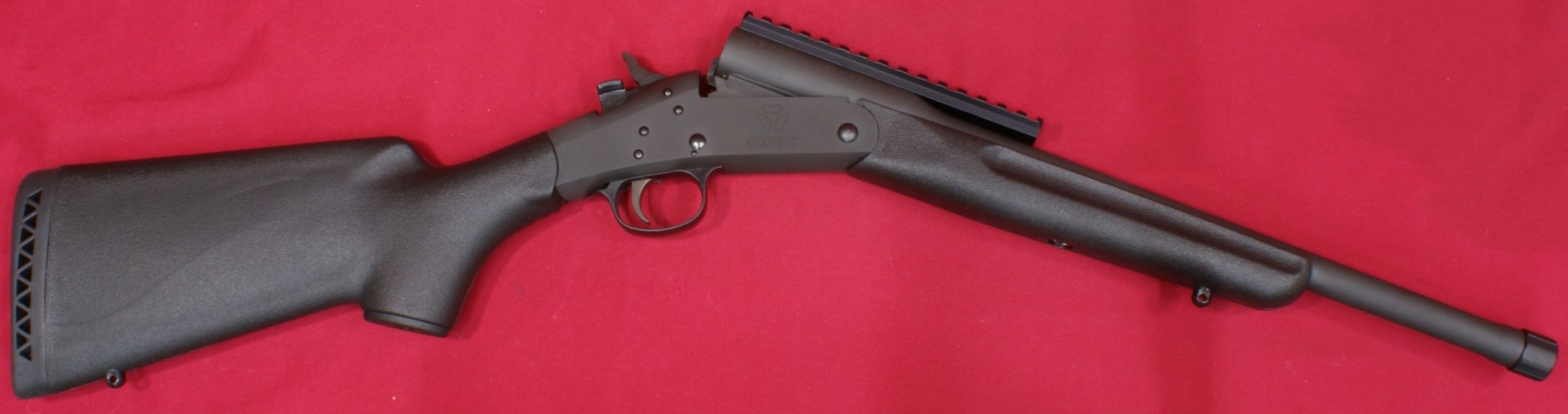

First press the release lever and open the action to ensure the rifle is unloaded.

Figure 1
H&R 300 AAC Blackout Handi-Rifle Review

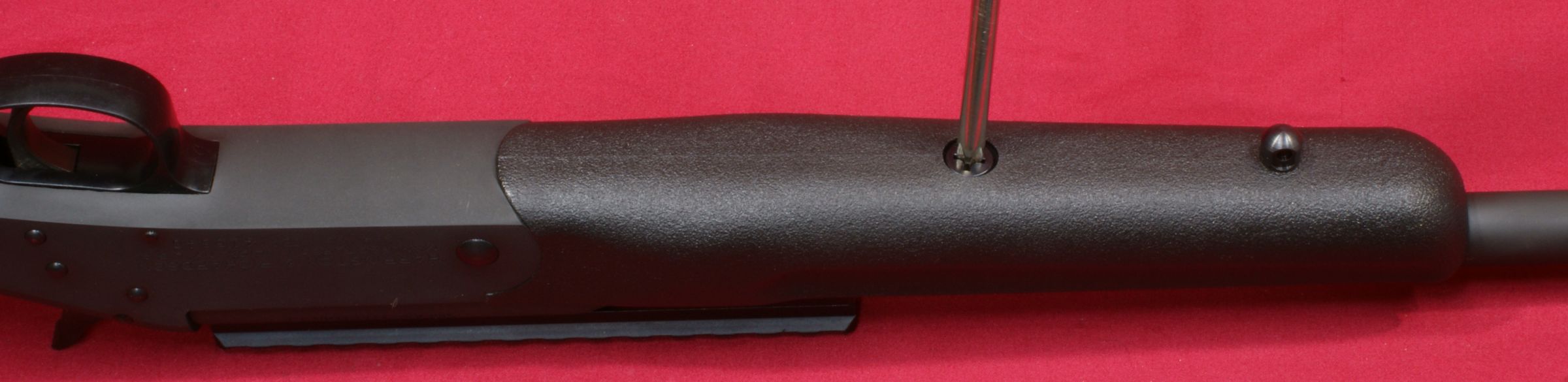

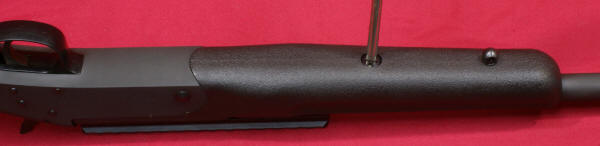

Next use a Phillips screwdriver to remove the screw on the bottom of the forend.

Figure 2
H&R 300 AAC Blackout Handi-Rifle Review

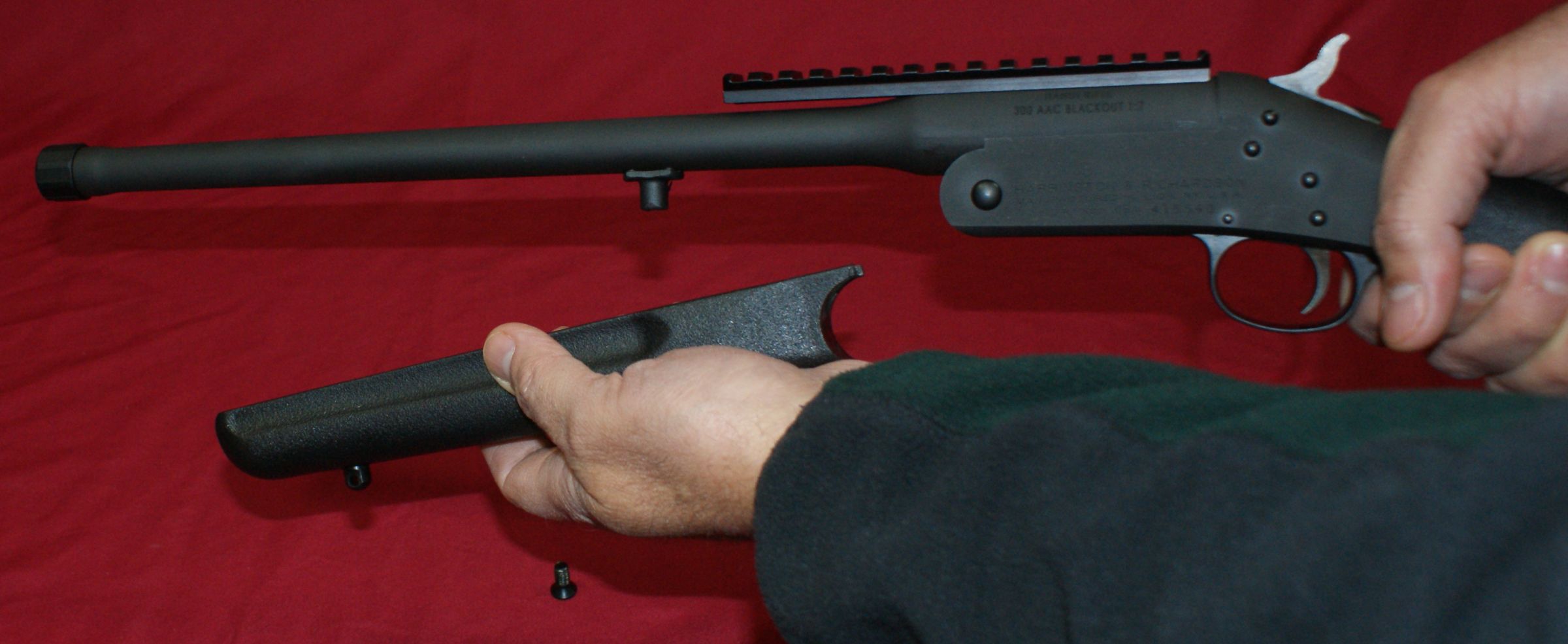

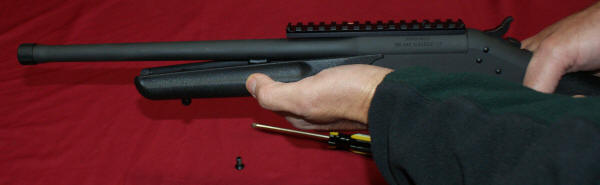

With the screw removed, pull down on the front of the forend and the forend will separate away from the rifle.

Figure 3
H&R 300 AAC Blackout Handi-Rifle Review

Figure 4
H&R 300 AAC Blackout Handi-Rifle Review

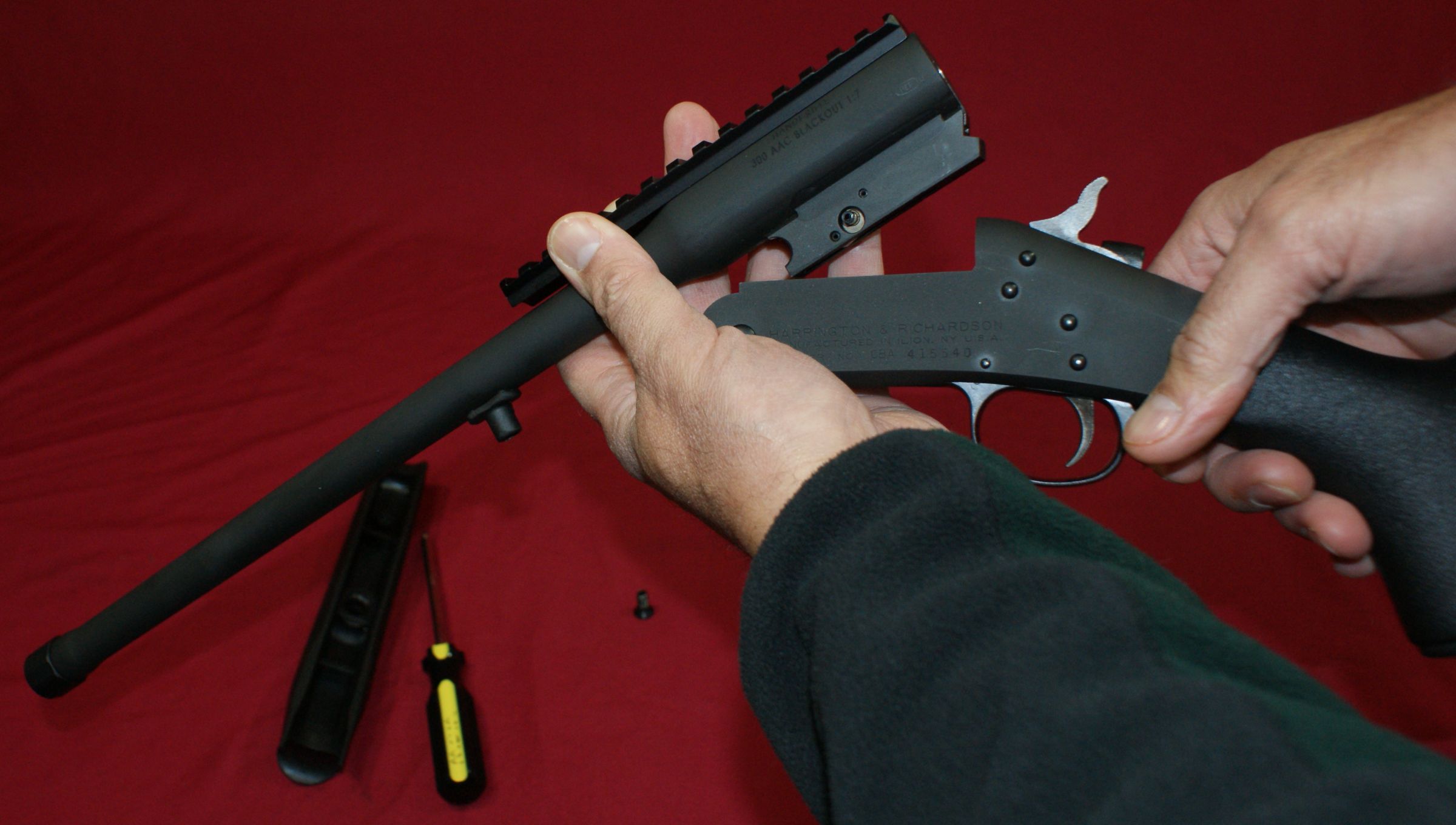

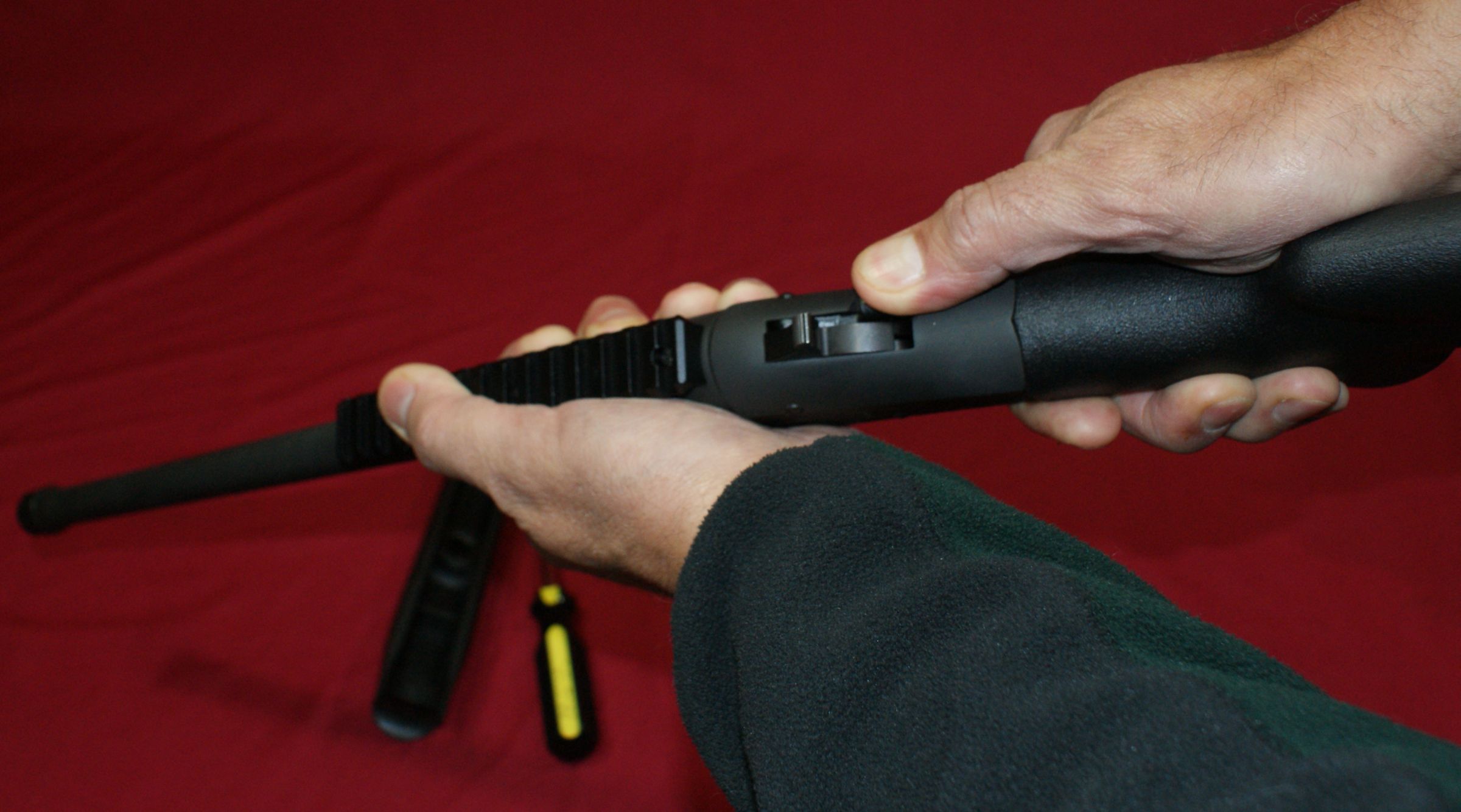

Now when you press the release lever, the barrel will rotate farther down and slightly back and can be removed from the action.

Figure 5
H&R 300 AAC Blackout Handi-Rifle Review

Figure 6
H&R 300 AAC Blackout Handi-Rifle Review

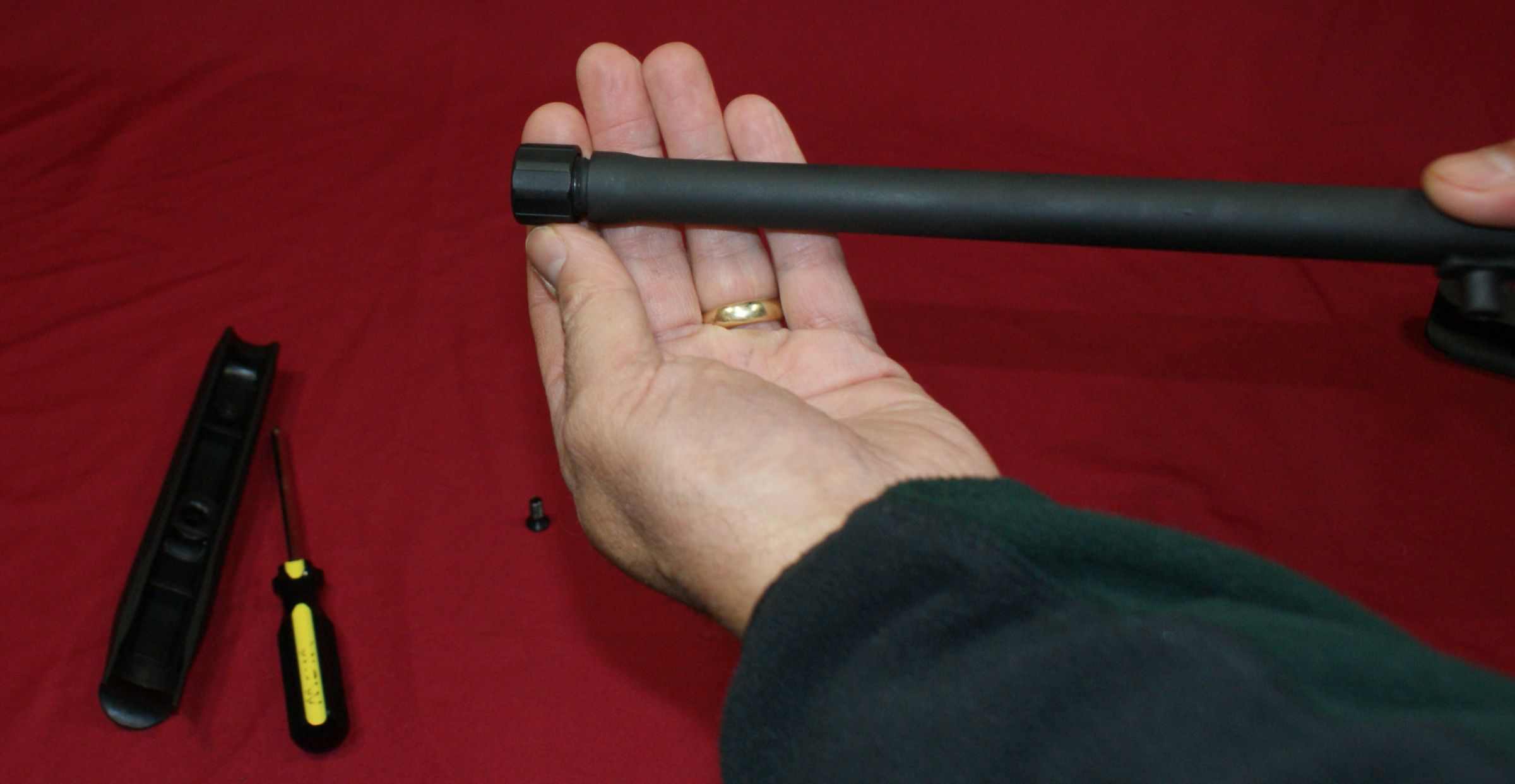

Last, you can remove the thread protector and that is all that is needed to properly clean your Handi-Rifle.

Figure 7
H&R 300 AAC Blackout Handi-Rifle Review

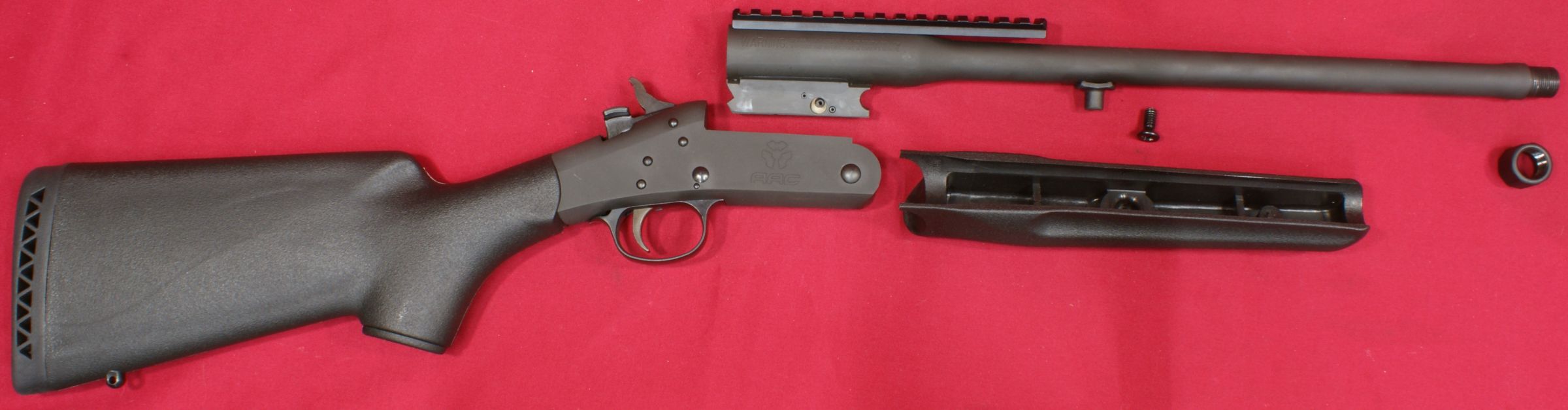

The photo below shows the rifle disassembled to this state.

Figure 8
H&R 300 AAC Blackout Handi-Rifle Review

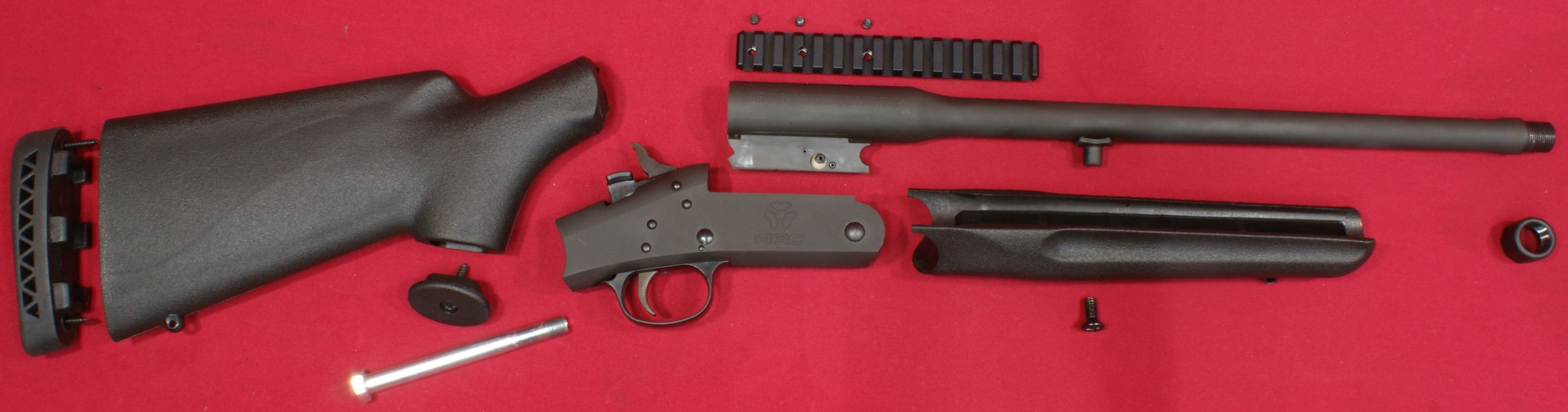

I decided to go ahead and remove the stock and optics mount rail to show what I consider to be the maximum you would ever want to disassemble your rifle  To remove the rail, you remove the three screws.  To remove the stock, you first remove the recoil pad by loosening the two screws that pass through the pad and into the stock.  With the recoil pad removed, you can then access and remove the stock bolt.

Figure 9
H&R 300 AAC Blackout Handi-Rifle Review



Thoughts

It doesn't get much simpler than disassembly on a break action rifle and this was true for the Handi-Rifle.

For more detailed photos and commentary, make sure you check out the other parts of this review and feel free to leave comments on my Reader's Comments page.  The following links are provided to help you see other parts of this review.
